TRIPOD Hand Operated Winch

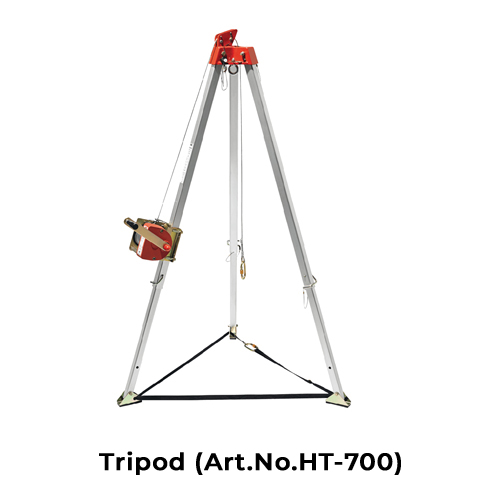

TRIPOD

TRIPOD is mainly used for easy access into and retrieval of personnel into confined space such as Man-hole, Tanks etc. It provides a means of controlled ascent and descent.
Tripod is very easy to use. A simple setup procedure makes the process quick and promotes correct use.

Easy to use
  • Aluminum head and leg reduces weight, improving portability.
  • Legs are telescopic up to 8 ft high, and do not tangle when unit is collapsed for easier transportation and storage.
  • Legs automatically lock in the open position for added safety. Base chain prevents the legs from spreading.
  • A maximum height indicator provides quick identification of the maximum leg extension length.
  • There is no need of a separate pulley/bracket assembly.
  • Accessories can be attached to any of the three legs for faster set up.
Durable
  • Robust Aluminum head with two interval wheel/pulley helps smooth operation of the winch
  • Aluminum Eye bolt fixed in the head could sustain more than 12kN
  • Fully adjustable telescopic legs for use in uneven surface.
  • Skid resistance feet with anti-slip rubber shoe.
  • Legs base support retention, chain improves stability and strength of the entire system.
  • Internal leg locking mechanism prevents accidental disengagement during use and storage.
  • Conforms: EN 795: 2012, Type–B

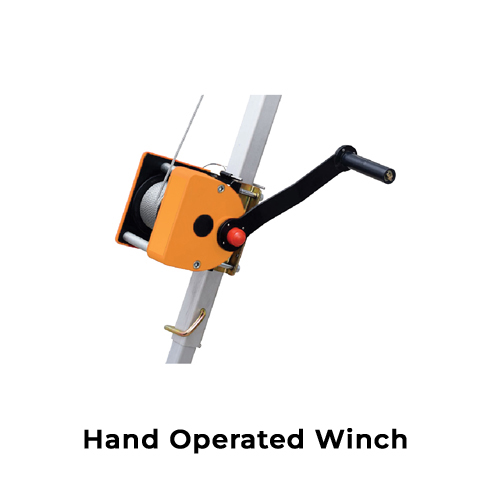

Hand operated Winch
  • To be used for raising or lowering of personnel in confined spaces
  • Length of the cable - 20 mtr
  • Cable rope - 8 mm diameter
  • Lifting capacity - 200 kgs
  • It has a capacity of anti-return system with lowering/lifting capacity of 25 ft/min
  • Compatibility: Can be mounted on Tripods and Davit Arm
  • Conforms : EN 1496:2006, Class B
